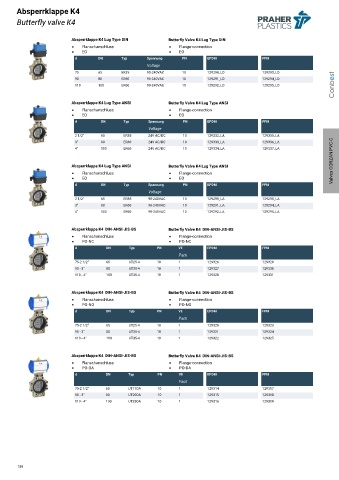

Absperrklappe K4
Butterfly valve K4

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 75 65 ER35 90-240VAC 10 129290_LD 129293_LD
1 90 80 ER60 90-240VAC 10 129291_LD 129294_LD
1 110 100 ER60 90-240VAC 10 129292_LD 129295_LD Conbest

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 2 1/2" 65 ER35 24V AC/DC 10 129332_LA 129335_LA
Valves CORZAN PVC-C
1 3" 80 ER60 24V AC/DC 10 129333_LA 129336_LA
1 4" 100 ER60 24V AC/DC 10 129334_LA 129337_LA

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 2 1/2" 65 ER35 90-240VAC 10 129290_LA 129293_LA
1 3" 80 ER60 90-240VAC 10 129291_LA 129294_LA
1 4" 100 ER60 90-240VAC 10 129292_LA 129295_LA

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 129326 129329
1 90 - 3" 80 UT30-4 10 1 129327 129330
1 110 - 4" 100 UT35-4 10 1 129328 129331

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 129320 129323
1 90 - 3" 80 UT30-4 10 1 129321 129324
1 110 - 4" 100 UT35-4 10 1 129322 129325

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT17DA 10 1 129314 129317
1 90 - 3" 80 UT20DA 10 1 129315 129318
1 110 - 4" 100 UT25DA 10 1 129316 129319

189
