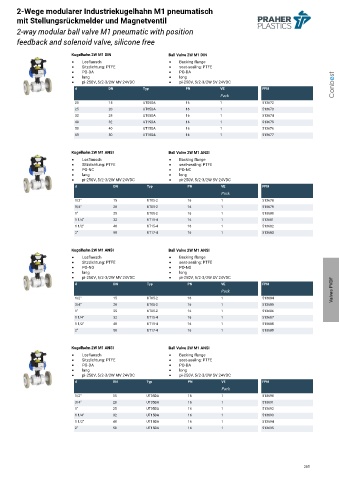

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmelder und Magnetventil
2-way modular ball valve M1 pneumatic with position
feedback and solenoid valve, silicone free

Kugelhahn 2W M1 DIN Ball Valve 2W M1 DIN
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
lang long
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE FPM Conbest
Pack
5 20 15 UT05DA 16 1 513672
5 25 20 UT05DA 16 1 513673
5 32 25 UT05DA 16 1 513674
5 40 32 UT15DA 16 1 513675
5 50 40 UT15DA 16 1 513676
5 63 50 UT15DA 16 1 513677

Kugelhahn 2W M1 ANSI Ball Valve 2W M1 ANSI
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
lang long
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE FPM
Pack
5 1/2" 15 UT05-2 16 1 513678
5 3/4" 20 UT05-2 16 1 513679
5 1" 25 UT05-2 16 1 513680
5 1 1/4" 32 UT15-4 16 1 513681
5 1 1/2" 40 UT15-4 16 1 513682
5 2" 50 UT17-4 16 1 513683

Kugelhahn 2W M1 ANSI Ball Valve 2W M1 ANSI
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
lang long
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
Valves PVDF
d DN Typ PN VE FPM
Pack
5 1/2" 15 UT05-2 16 1 513684
5 3/4" 20 UT05-2 16 1 513685
5 1" 25 UT05-2 16 1 513686
5 1 1/4" 32 UT15-4 16 1 513687
5 1 1/2" 40 UT15-4 16 1 513688
5 2" 50 UT17-4 16 1 513689

Kugelhahn 2W M1 ANSI Ball Valve 2W M1 ANSI
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
lang long
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE FPM
Pack
5 1/2" 15 UT05DA 16 1 513690
5 3/4" 20 UT05DA 16 1 513691
5 1" 25 UT05DA 16 1 513692
5 1 1/4" 32 UT15DA 16 1 513693
5 1 1/2" 40 UT15DA 16 1 513694
5 2" 50 UT15DA 16 1 513695
