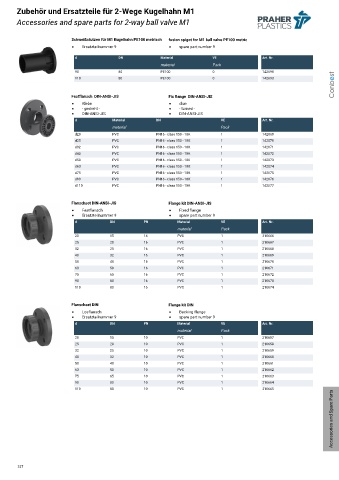

Zubehör und Ersatzteile für 2-Wege Kugelhahn M1
Accessories and spare parts for 2-way ball valve M1

Schweißstutzen für M1 Kugelhahn PE100 metrisch fusion spigot for M1 ball valve PE100 metric
Ersatzteilnummer 9 spare part number 9
d DN Material VE Art. Nr.
material Pack
1 90 80 PE100 0 142690
Conbest
1 110 80 PE100 0 142693

Festflansch DIN-ANSI-JIS Fix flange DIN-ANSI-JIS
Klebe clue
- gedreht - - turned -
DIN-ANSI-JIS DIN-ANSI-JIS
d Material DN VE Art. Nr.
material Pack
1 d20 PVC PN16 - class 150 - 10K 1 142069
1 d25 PVC PN16 - class 150 - 10K 1 142070
1 d32 PVC PN16 - class 150 - 10K 1 142071
1 d40 PVC PN16 - class 150 - 10K 1 142072
1 d50 PVC PN16 - class 150 - 10K 1 142073
1 d63 PVC PN16 - class 150 - 10K 1 142074
1 d75 PVC PN16 - class 150 - 10K 1 142075
1 d90 PVC PN16 - class 150 - 10K 1 142076
1 d110 PVC PN16 - class 150 - 10K 1 142077

Flanschset DIN-ANSI-JIS Flange kit DIN-ANSI-JIS
Festflansch Fixed flange
Ersatzteilnummer 9 spare part number 9
d DN PN Material VE Art. Nr.
material Pack
2 20 15 16 PVC 1 210666
2 25 20 16 PVC 1 210667
2 32 25 16 PVC 1 210668
2 40 32 16 PVC 1 210669
2 50 40 16 PVC 1 210670
2 63 50 16 PVC 1 210671
2 75 65 16 PVC 1 210672
2 90 80 16 PVC 1 210673
2 110 80 16 PVC 1 210674

Flanschset DIN Flange kit DIN
Losflansch Backing flange
Ersatzteilnummer 9 spare part number 9
d DN PN Material VE Art. Nr.
material Pack
2 20 15 10 PVC 1 210657
2 25 20 10 PVC 1 210658
2 32 25 10 PVC 1 210659
2 40 32 10 PVC 1 210660
2 50 40 10 PVC 1 210661
2 63 50 10 PVC 1 210662
2 75 65 10 PVC 1 210663
2 90 80 10 PVC 1 210664
2 110 80 10 PVC 1 210665
Accessories and Spare Parts

327
