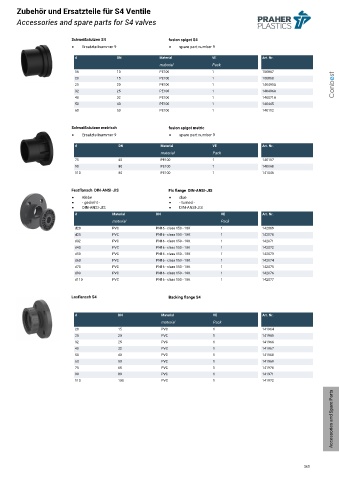

Zubehör und Ersatzteile für S4 Ventile
Accessories and spare parts for S4 valves

Schweißstutzen S4 fusion spigot S4
Ersatzteilnummer 9 spare part number 9
d DN Material VE Art. Nr.
material Pack
1 16 10 PE100 1 100867
1 20 15 PE100 1 100868
1 25 20 PE100 1 140495A Conbest
1 32 25 PE100 1 140496A
1 40 32 PE100 1 140071A
1 50 40 PE100 1 140445
1 63 50 PE100 1 140112

Schweißstutzen metrisch fusion spigot metric
Ersatzteilnummer 9 spare part number 9

d DN Material VE Art. Nr.
material Pack
1 75 65 PE100 1 140197
1 90 80 PE100 1 140060
1 110 80 PE100 1 141046

Festflansch DIN-ANSI-JIS Fix flange DIN-ANSI-JIS
Klebe clue
- gedreht - - turned -
DIN-ANSI-JIS DIN-ANSI-JIS
d Material DN VE Art. Nr.
material Pack
1 d20 PVC PN16 - class 150 - 10K 1 142069
1 d25 PVC PN16 - class 150 - 10K 1 142070
1 d32 PVC PN16 - class 150 - 10K 1 142071
1 d40 PVC PN16 - class 150 - 10K 1 142072
1 d50 PVC PN16 - class 150 - 10K 1 142073
1 d63 PVC PN16 - class 150 - 10K 1 142074
1 d75 PVC PN16 - class 150 - 10K 1 142075
1 d90 PVC PN16 - class 150 - 10K 1 142076
1 d110 PVC PN16 - class 150 - 10K 1 142077

Losflansch S4 Backing flange S4

d DN Material VE Art. Nr.
material Pack
1 20 15 PVC 1 141964
1 25 20 PVC 1 141965
1 32 25 PVC 1 141966
1 40 32 PVC 1 141967
1 50 40 PVC 1 141968
1 63 50 PVC 1 141969
1 75 65 PVC 1 141970
1 90 80 PVC 1 141971
1 110 100 PVC 1 141972
Accessories and Spare Parts

365
