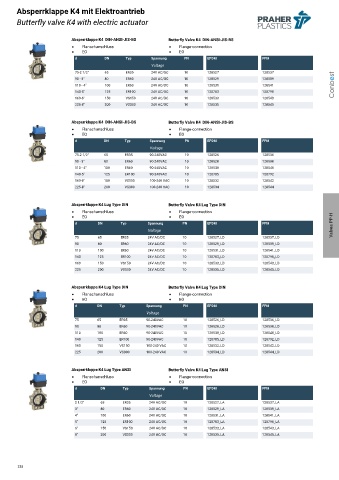

Page 238 - Armatura Przemysłowa Praher

Absperrklappe K4 mit Elektroantrieb
Butterfly valve K4 with electric actuator

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 75-2 1/2" 65 ER35 24V AC/DC 10 128527 128537
1 90 - 3" 80 ER60 24V AC/DC 10 128529 128539
1 110 - 4" 100 ER60 24V AC/DC 10 128531 128541 Conbest
1 140-5" 125 ER100 24V AC/DC 10 128783 128790
1 160-6" 150 VS150 24V AC/DC 10 128533 128543
1 225-8" 200 VS300 24V AC/DC 10 128535 128545

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 75-2 1/2" 65 ER35 90-240VAC 10 128526 128536
1 90 - 3" 80 ER60 90-240VAC 10 128528 128538
1 110 - 4" 100 ER60 90-240VAC 10 128530 128540
1 140-5" 125 ER100 90-240VAC 10 128785 128792
1 160-6" 150 VS150 100-240 VAC 10 128532 128542
1 225-8" 200 VS300 100-240 VAC 10 128534 128544

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM Valves PP-H
Voltage
1 75 65 ER35 24V AC/DC 10 128527_LD 128537_LD
1 90 80 ER60 24V AC/DC 10 128529_LD 128539_LD
1 110 100 ER60 24V AC/DC 10 128531_LD 128541_LD
1 140 125 ER100 24V AC/DC 10 128783_LD 128790_LD
1 160 150 VS150 24V AC/DC 10 128533_LD 128543_LD
1 225 200 VS300 24V AC/DC 10 128535_LD 128545_LD

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 75 65 ER35 90-240VAC 10 128526_LD 128536_LD
1 90 80 ER60 90-240VAC 10 128528_LD 128538_LD
1 110 100 ER60 90-240VAC 10 128530_LD 128540_LD
1 140 125 ER100 90-240VAC 10 128785_LD 128792_LD
1 160 150 VS150 100-240 VAC 10 128532_LD 128542_LD
1 225 200 VS300 100-240 VAC 10 128534_LD 128544_LD

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 2 1/2" 65 ER35 24V AC/DC 10 128527_LA 128537_LA
1 3" 80 ER60 24V AC/DC 10 128529_LA 128539_LA
1 4" 100 ER60 24V AC/DC 10 128531_LA 128541_LA
1 5" 125 ER100 24V AC/DC 10 128783_LA 128790_LA
1 6" 150 VS150 24V AC/DC 10 128533_LA 128543_LA
1 8" 200 VS300 24V AC/DC 10 128535_LA 128545_LA

238
