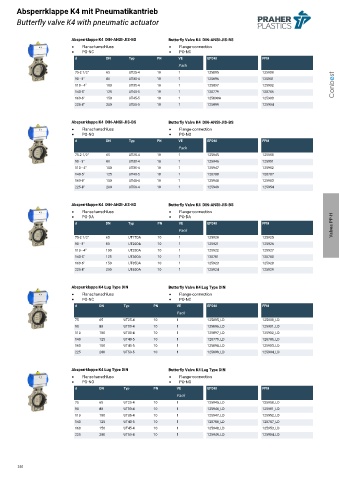

Absperrklappe K4 mit Pneumatikantrieb
Butterfly valve K4 with pneumatic actuator

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 125895 125900
1 90 - 3" 80 UT30-4 10 1 125896 125901
1 110 - 4" 100 UT35-4 10 1 125897 125902 Conbest
1 140-5" 125 UT40-5 10 1 128779 128786
1 160-6" 150 UT45-5 10 1 125898A 125903
1 225-8" 200 UT50-5 10 1 125899 125904

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 125945 125950
1 90 - 3" 80 UT30-4 10 1 125946 125951
1 110 - 4" 100 UT35-4 10 1 125947 125952
1 140-5" 125 UT40-5 10 1 128780 128787
1 160-6" 150 UT45-4 10 1 125948 125953
1 225-8" 200 UT50-4 10 1 125949 125954

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM Valves PP-H
Pack
1 75-2 1/2" 65 UT17DA 10 1 125920 125925
1 90 - 3" 80 UT20DA 10 1 125921 125926
1 110 - 4" 100 UT25DA 10 1 125922 125927
1 140-5" 125 UT30DA 10 1 128781 128788
1 160-6" 150 UT35DA 10 1 125923 125928
1 225-8" 200 UT40DA 10 1 125924 125929

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 75 65 UT25-4 10 1 125895_LD 125900_LD
1 90 80 UT30-4 10 1 125896_LD 125901_LD
1 110 100 UT35-4 10 1 125897_LD 125902_LD
1 140 125 UT40-5 10 1 128779_LD 128786_LD
1 160 150 UT45-5 10 1 125898_LD 125903_LD
1 225 200 UT50-5 10 1 125899_LD 125904_LD

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
1 75 65 UT25-4 10 1 125945_LD 125950_LD
1 90 80 UT30-4 10 1 125946_LD 125951_LD
1 110 100 UT35-4 10 1 125947_LD 125952_LD
1 140 125 UT40-5 10 1 128780_LD 128787_LD
1 160 150 UT45-4 10 1 125948_LD 125953_LD
1 225 200 UT50-4 10 1 125949_LD 125954_LD

240
