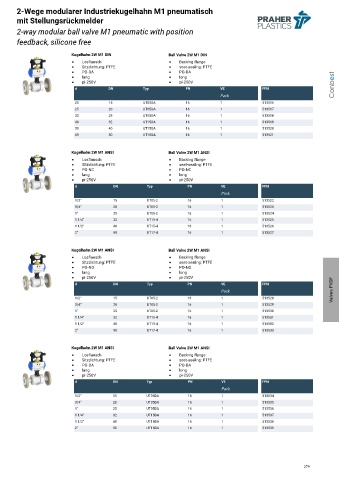

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmelder
2-way modular ball valve M1 pneumatic with position
feedback, silicone free

Kugelhahn 2W M1 DIN Ball Valve 2W M1 DIN
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
lang long
pi-250V pi-250V
d DN Typ PN VE FPM Conbest
Pack
5 20 15 UT05DA 16 1 513516
5 25 20 UT05DA 16 1 513517
5 32 25 UT05DA 16 1 513518
5 40 32 UT15DA 16 1 513519
5 50 40 UT15DA 16 1 513520
5 63 50 UT15DA 16 1 513521

Kugelhahn 2W M1 ANSI Ball Valve 2W M1 ANSI
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
lang long
pi-250V pi-250V
d DN Typ PN VE FPM
Pack
5 1/2" 15 UT05-2 16 1 513522
5 3/4" 20 UT05-2 16 1 513523
5 1" 25 UT05-2 16 1 513524
5 1 1/4" 32 UT15-4 16 1 513525
5 1 1/2" 40 UT15-4 16 1 513526
5 2" 50 UT17-4 16 1 513527

Kugelhahn 2W M1 ANSI Ball Valve 2W M1 ANSI
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
lang long
pi-250V pi-250V
Valves PVDF
d DN Typ PN VE FPM
Pack
5 1/2" 15 UT05-2 16 1 513528
5 3/4" 20 UT05-2 16 1 513529
5 1" 25 UT05-2 16 1 513530
5 1 1/4" 32 UT15-4 16 1 513531
5 1 1/2" 40 UT15-4 16 1 513532
5 2" 50 UT17-4 16 1 513533

Kugelhahn 2W M1 ANSI Ball Valve 2W M1 ANSI
Losflansch Backing flange
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
lang long
pi-250V pi-250V
d DN Typ PN VE FPM
Pack
5 1/2" 15 UT05DA 16 1 513534
5 3/4" 20 UT05DA 16 1 513535
5 1" 25 UT05DA 16 1 513536
5 1 1/4" 32 UT15DA 16 1 513537
5 1 1/2" 40 UT15DA 16 1 513538
5 2" 50 UT15DA 16 1 513539

279
