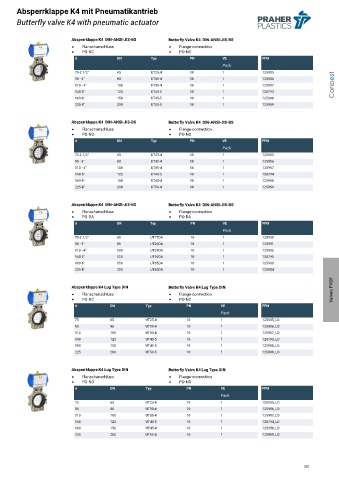

Absperrklappe K4 mit Pneumatikantrieb
Butterfly valve K4 with pneumatic actuator

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 125905
1 90 - 3" 80 UT30-4 10 1 125906
1 110 - 4" 100 UT35-4 10 1 125907 Conbest
1 140-5" 125 UT40-5 10 1 128793
1 160-6" 150 UT45-5 10 1 125908
1 225-8" 200 UT50-5 10 1 125909

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 125955
1 90 - 3" 80 UT30-4 10 1 125956
1 110 - 4" 100 UT35-4 10 1 125957
1 140-5" 125 UT40-5 10 1 128794
1 160-6" 150 UT45-4 10 1 125958
1 225-8" 200 UT50-4 10 1 125959

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE FPM
Pack
1 75-2 1/2" 65 UT17DA 10 1 125930
1 90 - 3" 80 UT20DA 10 1 125931
1 110 - 4" 100 UT25DA 10 1 125932
1 140-5" 125 UT30DA 10 1 128795
1 160-6" 150 UT35DA 10 1 125933
1 225-8" 200 UT40DA 10 1 125934
Valves PVDF
Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE FPM
Pack
1 75 65 UT25-4 10 1 125905_LD
1 90 80 UT30-4 10 1 125906_LD
1 110 100 UT35-4 10 1 125907_LD
1 140 125 UT40-5 10 1 128793_LD
1 160 150 UT45-5 10 1 125908_LD
1 225 200 UT50-5 10 1 125909_LD

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE FPM
Pack
1 75 65 UT25-4 10 1 125955_LD
1 90 80 UT30-4 10 1 125956_LD
1 110 100 UT35-4 10 1 125957_LD
1 140 125 UT40-5 10 1 128794_LD
1 160 150 UT45-4 10 1 125958_LD
1 225 200 UT50-4 10 1 125959_LD

301
