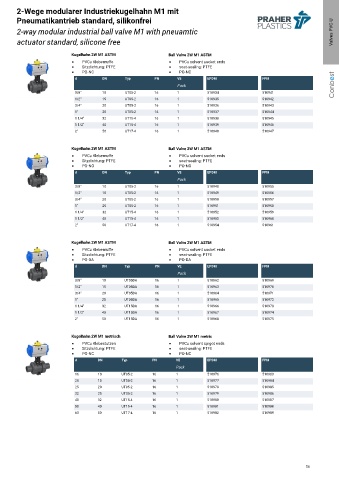

2-Wege modularer Industriekugelhahn M1 mit
Pneumatikantrieb standard, silikonfrei
2-way modular industrial ball valve M1 with pneuamtic Valves PVC-U
actuator standard, silicone free

Kugelhahn 2W M1 ASTM Ball Valve 2W M1 ASTM
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack Conbest
5 3/8" 10 UT05-2 16 1 510934 510941
5 1/2" 15 UT05-2 16 1 510935 510942
5 3/4" 20 UT05-2 16 1 510936 510943
5 1" 25 UT05-2 16 1 510937 510944
5 1 1/4" 32 UT15-4 16 1 510938 510945
5 1 1/2" 40 UT15-4 16 1 510939 510946
5 2" 50 UT17-4 16 1 510940 510947

Kugelhahn 2W M1 ASTM Ball Valve 2W M1 ASTM
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 510948 510955
5 1/2" 15 UT05-2 16 1 510949 510956
5 3/4" 20 UT05-2 16 1 510950 510957
5 1" 25 UT05-2 16 1 510951 510958
5 1 1/4" 32 UT15-4 16 1 510952 510959
5 1 1/2" 40 UT15-4 16 1 510953 510960
5 2" 50 UT17-4 16 1 510954 510961

Kugelhahn 2W M1 ASTM Ball Valve 2W M1 ASTM
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05DA 16 1 510962 510969
5 1/2" 15 UT05DA 16 1 510963 510970
5 3/4" 20 UT05DA 16 1 510964 510971
5 1" 25 UT05DA 16 1 510965 510972
5 1 1/4" 32 UT15DA 16 1 510966 510973
5 1 1/2" 40 UT15DA 16 1 510967 510974
5 2" 50 UT15DA 16 1 510968 510975

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebestutzen PVCu solvent spigot ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
5 16 10 UT05-2 16 1 510976 510983
5 20 15 UT05-2 16 1 510977 510984
5 25 20 UT05-2 16 1 510978 510985
5 32 25 UT05-2 16 1 510979 510986
5 40 32 UT15-4 16 1 510980 510987
5 50 40 UT15-4 16 1 510981 510988
5 63 50 UT17-4 16 1 510982 510989

56
