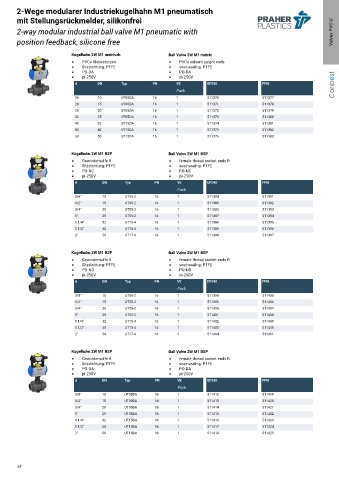

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmelder, silikonfrei
2-way modular industrial ball valve M1 pneumatic with Valves PVC-U
position feedback, silicone free

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebestutzen PVCu solvent spigot ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V pi-250V
d DN Typ PN VE EPDM FPM Conbest
Pack
5 16 10 UT05DA 16 1 511370 511377
5 20 15 UT05DA 16 1 511371 511378
5 25 20 UT05DA 16 1 511372 511379
5 32 25 UT05DA 16 1 511373 511380
5 40 32 UT15DA 16 1 511374 511381
5 50 40 UT15DA 16 1 511375 511382
5 63 50 UT15DA 16 1 511376 511383

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V pi-250V
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 511384 511391
5 1/2" 15 UT05-2 16 1 511385 511392
5 3/4" 20 UT05-2 16 1 511386 511393
5 1" 25 UT05-2 16 1 511387 511394
5 1 1/4" 32 UT15-4 16 1 511388 511395
5 1 1/2" 40 UT15-4 16 1 511389 511396
5 2" 50 UT17-4 16 1 511390 511397

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
pi-250V pi-250V
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 511398 511405
5 1/2" 15 UT05-2 16 1 511399 511406
5 3/4" 20 UT05-2 16 1 511400 511407
5 1" 25 UT05-2 16 1 511401 511408
5 1 1/4" 32 UT15-4 16 1 511402 511409
5 1 1/2" 40 UT15-4 16 1 511403 511410
5 2" 50 UT17-4 16 1 511404 511411

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V pi-250V
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05DA 16 1 511412 511419
5 1/2" 15 UT05DA 16 1 511413 511420
5 3/4" 20 UT05DA 16 1 511414 511421
5 1" 25 UT05DA 16 1 511415 511422
5 1 1/4" 32 UT15DA 16 1 511416 511423
5 1 1/2" 40 UT15DA 16 1 511417 511424
5 2" 50 UT15DA 16 1 511418 511425
