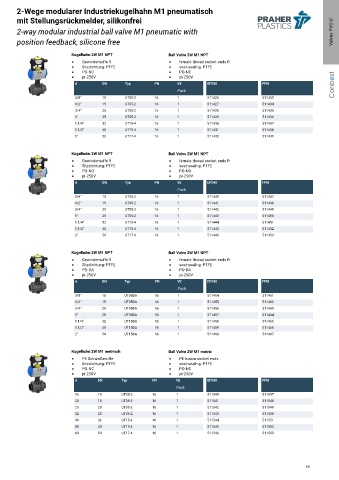

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmelder, silikonfrei
2-way modular industrial ball valve M1 pneumatic with Valves PVC-U
position feedback, silicone free

Kugelhahn 2W M1 NPT Ball Valve 2W M1 NPT
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V pi-250V
d DN Typ PN VE EPDM FPM Conbest
Pack
5 3/8" 10 UT05-2 16 1 511426 511433
5 1/2" 15 UT05-2 16 1 511427 511434
5 3/4" 20 UT05-2 16 1 511428 511435
5 1" 25 UT05-2 16 1 511429 511436
5 1 1/4" 32 UT15-4 16 1 511430 511437
5 1 1/2" 40 UT15-4 16 1 511431 511438
5 2" 50 UT17-4 16 1 511432 511439

Kugelhahn 2W M1 NPT Ball Valve 2W M1 NPT
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
pi-250V pi-250V
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 511440 511447
5 1/2" 15 UT05-2 16 1 511441 511448
5 3/4" 20 UT05-2 16 1 511442 511449
5 1" 25 UT05-2 16 1 511443 511450
5 1 1/4" 32 UT15-4 16 1 511444 511451
5 1 1/2" 40 UT15-4 16 1 511445 511452
5 2" 50 UT17-4 16 1 511446 511453

Kugelhahn 2W M1 NPT Ball Valve 2W M1 NPT
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V pi-250V
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05DA 16 1 511454 511461
5 1/2" 15 UT05DA 16 1 511455 511462
5 3/4" 20 UT05DA 16 1 511456 511463
5 1" 25 UT05DA 16 1 511457 511464
5 1 1/4" 32 UT15DA 16 1 511458 511465
5 1 1/2" 40 UT15DA 16 1 511459 511466
5 2" 50 UT15DA 16 1 511460 511467

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PE Schweißmuffe PE fusion socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V pi-250V
d DN Typ PN VE EPDM FPM
Pack
5 16 10 UT05-2 16 1 511540 511547
5 20 15 UT05-2 16 1 511541 511548
5 25 20 UT05-2 16 1 511542 511549
5 32 25 UT05-2 16 1 511543 511550
5 40 32 UT15-4 16 1 511544 511551
5 50 40 UT15-4 16 1 511545 511552
5 63 50 UT17-4 16 1 511546 511553

66
