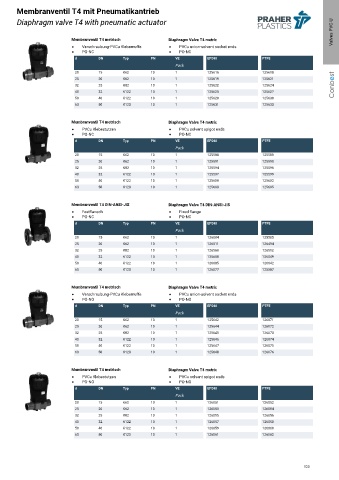

Membranventil T4 mit Pneumatikantrieb
Valves PVC-U
Diaphragm valve T4 with pneumatic actuator

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung-PVCu Klebemuffe PVCu union-solvent socket ends
PO-NC PO-NC
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 125616 125618
1 25 20 K62 10 1 125619 125621
1 32 25 K82 10 1 125622 125624 Conbest
1 40 32 K122 10 1 125625 125627
1 50 40 K122 10 1 125628 125630
1 63 50 K123 10 1 125631 125633

Membranventil T4 metrisch Diaphragm Valve T4 metric
PVCu Klebestutzen PVCu solvent spigot ends
PO-NC PO-NC
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 125588 125589
1 25 20 K62 10 1 125591 125593
1 32 25 K82 10 1 125594 125596
1 40 32 K122 10 1 125597 125599
1 50 40 K122 10 1 125600 125602
1 63 50 K123 10 1 125603 125605

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Festflansch Fixed flange
PO-NC PO-NC
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 126084 125585
1 25 20 K62 10 1 126511 126494
1 32 25 K82 10 1 126568 126512
1 40 32 K122 10 1 125650 126049
1 50 40 K122 10 1 126085 126042
1 63 50 K123 10 1 126077 125587

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung-PVCu Klebemuffe PVCu union-solvent socket ends
PO-NO PO-NO
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 125642 126071
1 25 20 K62 10 1 125644 126072
1 32 25 K82 10 1 125645 126073
1 40 32 K122 10 1 125646 126074
1 50 40 K122 10 1 125647 126075
1 63 50 K123 10 1 125648 126076

Membranventil T4 metrisch Diaphragm Valve T4 metric
PVCu Klebestutzen PVCu solvent spigot ends
PO-NO PO-NO
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 126051 126052
1 25 20 K62 10 1 126053 126054
1 32 25 K82 10 1 126055 126056
1 40 32 K122 10 1 126057 126058
1 50 40 K122 10 1 126059 126060
1 63 50 K123 10 1 126061 126062

120
