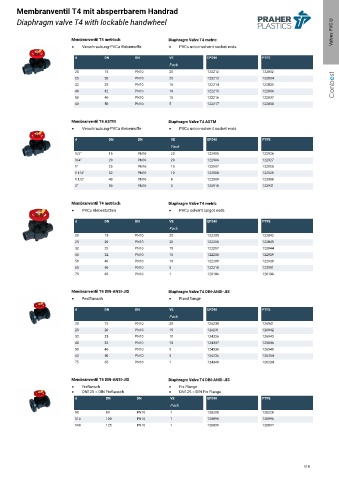

Page 118 - Armatura Przemysłowa Praher

Membranventil T4 mit absperrbarem Handrad
Valves PVC-U
Diaphragm valve T4 with lockable handwheel

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung-PVCu Klebemuffe PVCu union-solvent socket ends
d DN DN VE EPDM PTFE
Pack
1 20 15 PN10 20 122212 122832
1 25 20 PN10 20 122213 122834
1 32 25 PN10 15 122214 122835 Conbest
1 40 32 PN10 10 122215 122836
1 50 40 PN10 10 122216 122837
1 63 50 PN10 5 122217 122838

Membranventil T4 ASTM Diaphragm Valve T4 ASTM
Verschraubung-PVCu Klebemuffe PVCu union-solvent socket ends
d DN DN VE EPDM PTFE
Pack
1 1/2" 15 PN10 20 122905 122926
1 3/4" 20 PN10 20 122906 122927
1 1" 25 PN10 15 122907 122928
1 1 1/4" 32 PN10 10 122908 122929
1 1 1/2" 40 PN10 8 122909 122930
1 2" 50 PN10 5 122910 122931

Membranventil T4 metrisch Diaphragm Valve T4 metric
PVCu Klebestutzen PVCu solvent spigot ends
d DN DN VE EPDM PTFE
Pack
1 20 15 PN10 20 122205 122842
1 25 20 PN10 20 122206 122843
1 32 25 PN10 15 122207 122844
1 40 32 PN10 10 122208 122929
1 50 40 PN10 10 122209 122930
1 63 50 PN10 5 122210 122931
1 75 65 PN10 1 120186 120188

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Festflansch Fixed flange

d DN DN VE EPDM PTFE
Pack
1 20 15 PN10 20 126230 126941
1 25 20 PN10 15 126231 126942
1 32 25 PN10 10 124336 126943
1 40 32 PN10 10 124337 125606
1 50 40 PN10 5 124338 126940
1 63 50 PN10 5 126236 128354
1 75 65 PN10 1 124340 126234

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
DN125 = DIN Fixflansch DN125 = DIN Fix Flange
d DN DN VE EPDM PTFE
Pack
1 90 80 PN10 1 120200 120228
1 110 100 PN10 1 120898 120896
1 140 125 PN10 1 120899 120897

118
