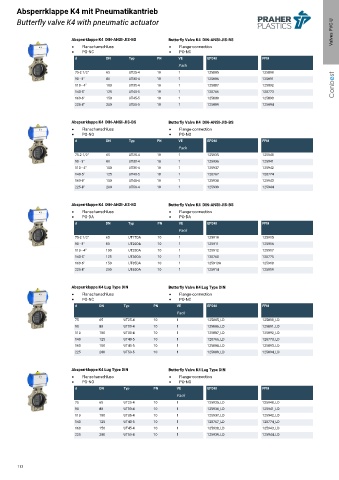

Absperrklappe K4 mit Pneumatikantrieb
Valves PVC-U
Butterfly valve K4 with pneumatic actuator

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 125885 125890
1 90 - 3" 80 UT30-4 10 1 125886 125891
1 110 - 4" 100 UT35-4 10 1 125887 125892 Conbest
1 140-5" 125 UT40-5 10 1 128766 128773
1 160-6" 150 UT45-5 10 1 125888 125893
1 225-8" 200 UT50-5 10 1 125889 125894

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT25-4 10 1 125935 125940
1 90 - 3" 80 UT30-4 10 1 125936 125941
1 110 - 4" 100 UT35-4 10 1 125937 125942
1 140-5" 125 UT40-5 10 1 128767 128774
1 160-6" 150 UT45-4 10 1 125938 125943
1 225-8" 200 UT50-4 10 1 125939 125944

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
1 75-2 1/2" 65 UT17DA 10 1 125910 125915
1 90 - 3" 80 UT20DA 10 1 125911 125916
1 110 - 4" 100 UT25DA 10 1 125912 125917
1 140-5" 125 UT30DA 10 1 128768 128775
1 160-6" 150 UT35DA 10 1 125913A 125918
1 225-8" 200 UT40DA 10 1 125914 125919

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 75 65 UT25-4 10 1 125885_LD 125890_LD
1 90 80 UT30-4 10 1 125886_LD 125891_LD
1 110 100 UT35-4 10 1 125887_LD 125892_LD
1 140 125 UT40-5 10 1 128766_LD 128773_LD
1 160 150 UT45-5 10 1 125888_LD 125893_LD
1 225 200 UT50-5 10 1 125889_LD 125894_LD

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
1 75 65 UT25-4 10 1 125935_LD 125940_LD
1 90 80 UT30-4 10 1 125936_LD 125941_LD
1 110 100 UT35-4 10 1 125937_LD 125942_LD
1 140 125 UT40-5 10 1 128767_LD 128774_LD
1 160 150 UT45-4 10 1 125938_LD 125943_LD
1 225 200 UT50-4 10 1 125939_LD 125944_LD

113
