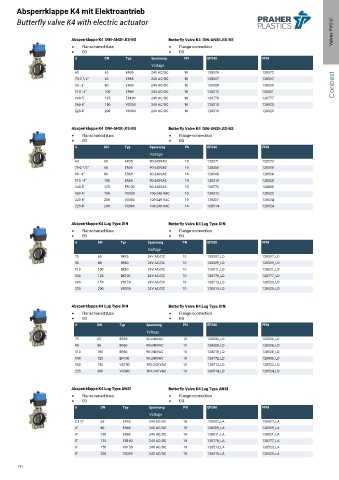

Absperrklappe K4 mit Elektroantrieb
Valves PVC-U
Butterfly valve K4 with electric actuator

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 63 65 ER35 24V AC/DC 10 128570 128572
1 75-2 1/2" 65 ER35 24V AC/DC 10 128507 128517
1 90 - 3" 80 ER60 24V AC/DC 10 128509 128519 Conbest
1 110 - 4" 100 ER60 24V AC/DC 10 128511 128521
1 140-5" 125 ER100 24V AC/DC 10 128770 128777
1 160-6" 150 VS150 24V AC/DC 10 128513 128523
1 225-8" 200 VS300 24V AC/DC 10 128515 128525

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 63 65 ER35 90-240VAC 10 128571 128573
1 75-2 1/2" 65 ER35 90-240VAC 10 128506 128516
1 90 - 3" 80 ER60 90-240VAC 10 128508 128518
1 110 - 4" 100 ER60 90-240VAC 10 128510 128520
1 140-5" 125 ER100 90-240VAC 10 128772 128800
1 160-6" 150 VS150 100-240 VAC 10 128512 128522
1 225-8" 200 VS300 100-240 VAC 10 120207 128524
1 225-8" 200 VS300 100-240 VAC 10 128514 128524

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 75 65 ER35 24V AC/DC 10 128507_LD 128517_LD
1 90 80 ER60 24V AC/DC 10 128509_LD 128519_LD
1 110 100 ER60 24V AC/DC 10 128511_LD 128521_LD
1 140 125 ER100 24V AC/DC 10 128770_LD 128777_LD
1 160 150 VS150 24V AC/DC 10 128513_LD 128523_LD
1 225 200 VS300 24V AC/DC 10 128515_LD 128525_LD

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 75 65 ER35 90-240VAC 10 128506_LD 128516_LD
1 90 80 ER60 90-240VAC 10 128508_LD 128518_LD
1 110 100 ER60 90-240VAC 10 128510_LD 128520_LD
1 140 125 ER100 90-240VAC 10 128772_LD 128800_LD
1 160 150 VS150 100-240 VAC 10 128512_LD 128522_LD
1 225 200 VS300 100-240 VAC 10 128514_LD 128524_LD

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
EO EO
d DN Typ Spannung PN EPDM FPM
Voltage
1 2 1/2" 65 ER35 24V AC/DC 10 128507_LA 128517_LA
1 3" 80 ER60 24V AC/DC 10 128509_LA 128519_LA
1 4" 100 ER60 24V AC/DC 10 128511_LA 128521_LA
1 5" 125 ER100 24V AC/DC 10 128770_LA 128777_LA
1 6" 150 VS150 24V AC/DC 10 128513_LA 128523_LA
1 8" 200 VS300 24V AC/DC 10 128515_LA 128525_LA

111
