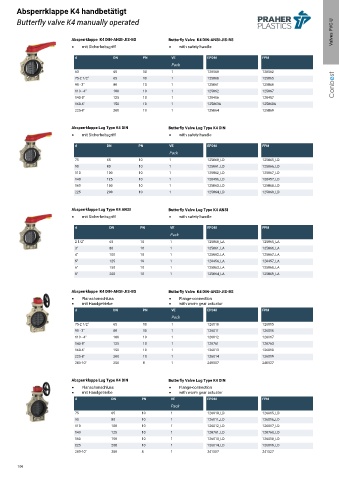

Page 109 - Armatura Przemysłowa Praher

Absperrklappe K4 handbetätigt
Valves PVC-U
Butterfly valve K4 manually operated

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
mit Sicherheitsgriff with safety handle
d DN PN VE EPDM FPM
Pack
1 63 65 10 1 128560 128562
1 75-2 1/2" 65 10 1 125860 125865
1 90 - 3" 80 10 1 125861 125866 Conbest
1 110 - 4" 100 10 1 125862 125867
1 140-5" 125 10 1 128456 128457
1 160-6" 150 10 1 125863A 125868A
1 225-8" 200 10 1 125864 125869

Absperrklappe Lug Type K4 DIN Butterfly Valve Lug Type K4 DIN
mit Sicherheitsgriff with safety handle

d DN PN VE EPDM FPM
Pack
1 75 65 10 1 125860_LD 125865_LD
1 90 80 10 1 125861_LD 125866_LD
1 110 100 10 1 125862_LD 125867_LD
1 140 125 10 1 128456_LD 128457_LD
1 160 150 10 1 125863_LD 125868_LD
1 225 200 10 1 125864_LD 125869_LD

Absperrklappe Lug Type K4 ANSI Butterfly Valve Lug Type K4 ANSI
mit Sicherheitsgriff with safety handle

d DN PN VE EPDM FPM
Pack
1 2 1/2" 65 10 1 125860_LA 125865_LA
1 3" 80 10 1 125861_LA 125866_LA
1 4" 100 10 1 125862_LA 125867_LA
1 5" 125 10 1 128456_LA 128457_LA
1 6" 150 10 1 125863_LA 125868_LA
1 8" 200 10 1 125864_LA 125869_LA

Absperrklappe K4 DIN-ANSI-JIS-BS Butterfly Valve K4 DIN-ANSI-JIS-BS
Flanschanschluss Flange-connection
mit Handgetriebe with worm gear actuator
d DN PN VE EPDM FPM
Pack
1 75-2 1/2" 65 10 1 126010 126015
1 90 - 3" 80 10 1 126011 126016
1 110 - 4" 100 10 1 126012 126017
1 140-5" 125 10 1 128761 128763
1 160-6" 150 10 1 126013 126018
1 225-8" 200 10 1 126014 126019
2 280-10" 250 8 1 240507 240527

Absperrklappe Lug Type K4 DIN Butterfly Valve Lug Type K4 DIN
Flanschanschluss Flange-connection
mit Handgetriebe with worm gear actuator
d DN PN VE EPDM FPM
Pack
1 75 65 10 1 126010_LD 126015_LD
1 90 80 10 1 126011_LD 126016_LD
1 110 100 10 1 126012_LD 126017_LD
1 140 125 10 1 128761_LD 128763_LD
1 160 150 10 1 126013_LD 126018_LD
1 225 200 10 1 126014_LD 126019_LD
2 280-10" 250 8 1 241507 241527

109
