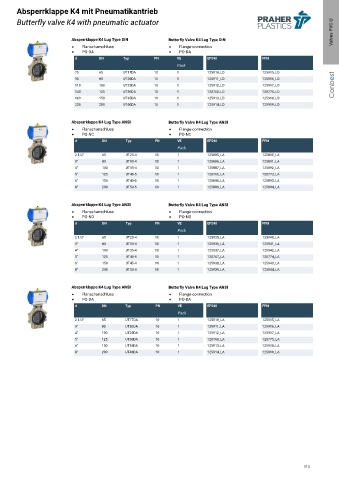

Absperrklappe K4 mit Pneumatikantrieb
Valves PVC-U
Butterfly valve K4 with pneumatic actuator

Absperrklappe K4 Lug Type DIN Butterfly Valve K4 Lug Type DIN
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
1 75 65 UT17DA 10 1 125910_LD 125915_LD
1 90 80 UT20DA 10 1 125911_LD 125916_LD
1 110 100 UT25DA 10 1 125912_LD 125917_LD Conbest
1 140 125 UT30DA 10 1 128768_LD 128775_LD
1 160 150 UT35DA 10 1 125913_LD 125918_LD
1 225 200 UT40DA 10 1 125914_LD 125919_LD

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
PO-NC PO-NC
d DN Typ PN VE EPDM FPM
Pack
1 2 1/2" 65 UT25-4 10 1 125885_LA 125890_LA
1 3" 80 UT30-4 10 1 125886_LA 125891_LA
1 4" 100 UT35-4 10 1 125887_LA 125892_LA
1 5" 125 UT40-5 10 1 128766_LA 128773_LA
1 6" 150 UT45-5 10 1 125888_LA 125893_LA
1 8" 200 UT50-5 10 1 125889_LA 125894_LA

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
PO-NO PO-NO
d DN Typ PN VE EPDM FPM
Pack
1 2 1/2" 65 UT25-4 10 1 125935_LA 125940_LA
1 3" 80 UT30-4 10 1 125936_LA 125941_LA
1 4" 100 UT35-4 10 1 125937_LA 125942_LA
1 5" 125 UT40-5 10 1 128767_LA 128774_LA
1 6" 150 UT45-4 10 1 125938_LA 125943_LA
1 8" 200 UT50-4 10 1 125939_LA 125944_LA

Absperrklappe K4 Lug Type ANSI Butterfly Valve K4 Lug Type ANSI
Flanschanschluss Flange-connection
PO-DA PO-DA
d DN Typ PN VE EPDM FPM
Pack
1 2 1/2" 65 UT17DA 10 1 125910_LA 125915_LA
1 3" 80 UT20DA 10 1 125911_LA 125916_LA
1 4" 100 UT25DA 10 1 125912_LA 125917_LA
1 5" 125 UT30DA 10 1 128768_LA 128775_LA
1 6" 150 UT35DA 10 1 125913_LA 125918_LA
1 8" 200 UT40DA 10 1 125914_LA 125919_LA

114
