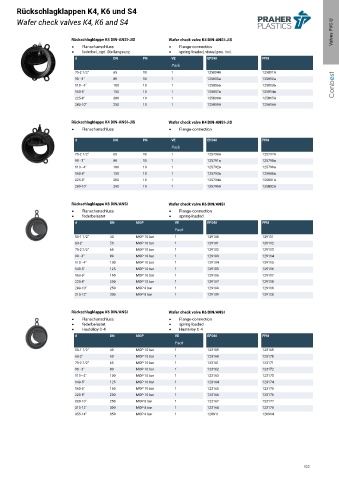

Rückschlagklappen K4, K6 und S4
Valves PVC-U
Wafer check valves K4, K6 and S4

Rückschlagklappe K4 DIN-ANSI-JIS Wafer check valve K4 DIN-ANSI-JIS
Flanschanschluss Flange-connection
federbel., opt. Stellungsanz. spring-loaded, visual pos. ind.
d DN PN VE EPDM FPM
Pack
1 75-2 1/2" 65 10 1 125804A 125811A
1 90 - 3" 80 10 1 125805a 125812a
1 110 - 4" 100 10 1 125806a 125813a Conbest
1 160-6" 150 10 1 125807a 125814a
1 225-8" 200 10 1 125808A 125815A
1 280-10" 250 10 1 125809A 125816A

Rückschlagklappe K4 DIN-ANSI-JIS Wafer check valve K4 DIN-ANSI-JIS
Flanschanschluss Flange-connection
d DN PN VE EPDM FPM
Pack
1 75-2 1/2" 65 10 1 125790A 125797A
1 90 - 3" 80 10 1 125791a 125798a
1 110 - 4" 100 10 1 125792a 125799a
1 160-6" 150 10 1 125793a 125800a
1 225-8" 200 10 1 125794A 125801A
1 280-10" 250 10 1 125795A 125802A

Rückschlagklappe K6 DIN/ANSI Wafer check valve K6 DIN/ANSI
Flanschanschluss Flange-connection
federbelastet spring-loaded
d DN MOP VE EPDM FPM
Pack
1 50-1 1/2" 40 MOP 10 bar 1 129100 129111
1 63-2" 50 MOP 10 bar 1 129101 129112
1 75-2 1/2" 65 MOP 10 bar 1 129102 129113
1 90 - 3" 80 MOP 10 bar 1 129103 129114
1 110 - 4" 100 MOP 10 bar 1 129104 129115
1 140-5" 125 MOP 10 bar 1 129105 129116
1 160-6" 150 MOP 10 bar 1 129106 129117
1 225-8" 200 MOP 10 bar 1 129107 129118
1 280-10" 250 MOP 8 bar 1 129108 129119
1 315-12" 300 MOP 8 bar 1 129109 129120

Rückschlagklappe K6 DIN/ANSI Wafer check valve K6 DIN/ANSI
Flanschanschluss Flange-connection
federbelastet spring-loaded
Hastelloy C-4 Hastelloy C-4
d DN MOP VE EPDM FPM
Pack
1 50-1 1/2" 40 MOP 10 bar 1 123159 123169
1 63-2" 50 MOP 10 bar 1 123160 123170
1 75-2 1/2" 65 MOP 10 bar 1 123161 123171
1 90 - 3" 80 MOP 10 bar 1 123162 123172
1 110 - 4" 100 MOP 10 bar 1 123163 123173
1 140-5" 125 MOP 10 bar 1 123164 123174
1 160-6" 150 MOP 10 bar 1 123165 123175
1 225-8" 200 MOP 10 bar 1 123166 123176
1 280-10" 250 MOP 8 bar 1 123167 123177
1 315-12" 300 MOP 8 bar 1 123168 123178
1 355-14" 350 MOP 6 bar 1 120911 120914

122
