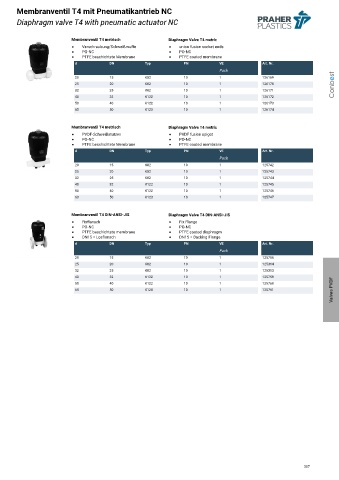

Membranventil T4 mit Pneumatikantrieb NC
Diaphragm valve T4 with pneumatic actuator NC

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung/Schweißmuffe union fusion socket ends
PO-NC PO-NC
PTFE beschichtete Membrane PTFE coated membrane
d DN Typ PN VE Art. Nr.
Pack
Conbest
1 20 15 K82 10 1 126169
1 25 20 K82 10 1 126170
1 32 25 K82 10 1 126171
1 40 32 K122 10 1 126172
1 50 40 K122 10 1 126173
1 63 50 K123 10 1 126174

Membranventil T4 metrisch Diaphragm Valve T4 metric
PVDF-Schweißstutzen PVDF fusion spigot
PO-NC PO-NC
PTFE beschichtete Membrane PTFE coated membrane
d DN Typ PN VE Art. Nr.
Pack
1 20 15 K82 10 1 125742
1 25 20 K82 10 1 125743
1 32 25 K82 10 1 125744
1 40 32 K122 10 1 125745
1 50 40 K122 10 1 125746
1 63 50 K123 10 1 125747

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
PO-NC PO-NC
PTFE beschichtete membrane PTFE coated diaphragm
DN15 = Losflansch DN15 = Backing Flange
d DN Typ PN VE Art. Nr.
Pack
1 20 15 K82 10 1 125756
1 25 20 K82 10 1 125314
1 32 25 K82 10 1 125313
1 40 32 K122 10 1 125759
1 50 40 K122 10 1 125760
1 63 50 K123 10 1 125761 Valves PVDF

307
