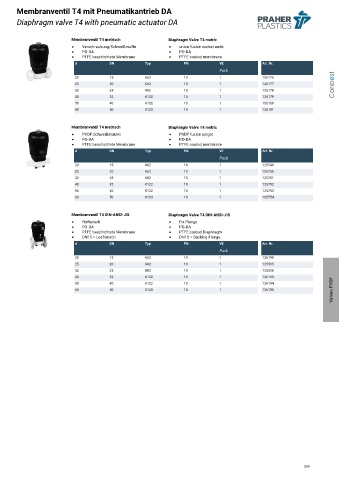

Membranventil T4 mit Pneumatikantrieb DA
Diaphragm valve T4 with pneumatic actuator DA

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung/Schweißmuffe union fusion socket ends
PO-DA PO-DA
PTFE beschichtete Membrane PTFE coated membrane
d DN Typ PN VE Art. Nr.
Pack
Conbest
1 20 15 K62 10 1 126176
1 25 20 K62 10 1 126177
1 32 25 K82 10 1 126178
1 40 32 K122 10 1 126179
1 50 40 K122 10 1 126180
1 63 50 K123 10 1 126181

Membranventil T4 metrisch Diaphragm Valve T4 metric
PVDF-Schweißstutzen PVDF fusion spigot
PO-DA PO-DA
PTFE beschichtete Membrane PTFE coated membrane
d DN Typ PN VE Art. Nr.
Pack
1 20 15 K62 10 1 125749
1 25 20 K62 10 1 125750
1 32 25 K82 10 1 125751
1 40 32 K122 10 1 125752
1 50 40 K122 10 1 125753
1 63 50 K123 10 1 125754

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
PO-DA PO-DA
PTFE beschichtete Membrane PTFE coated Diaphragm
DN15 = Losflansch DN15 = Backing Flange
d DN Typ PN VE Art. Nr.
Pack
1 20 15 K62 10 1 126190
1 25 20 K62 10 1 125515
1 32 25 K82 10 1 125510
1 40 32 K122 10 1 126193
1 50 40 K122 10 1 126194
1 63 50 K123 10 1 126195 Valves PVDF

309
