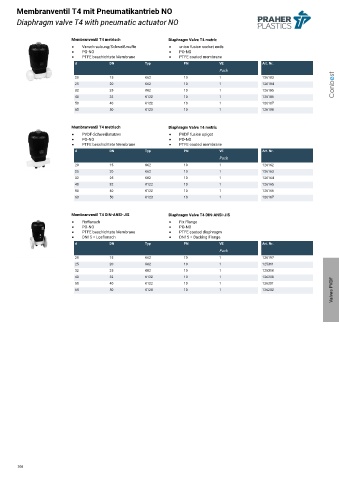

Membranventil T4 mit Pneumatikantrieb NO
Diaphragm valve T4 with pneumatic actuator NO

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung/Schweißmuffe union fusion socket ends
PO-NO PO-NO
PTFE beschichtete Membrane PTFE coated membrane
d DN Typ PN VE Art. Nr.
Pack
Conbest
1 20 15 K62 10 1 126183
1 25 20 K62 10 1 126184
1 32 25 K82 10 1 126185
1 40 32 K122 10 1 126186
1 50 40 K122 10 1 126187
1 63 50 K123 10 1 126188

Membranventil T4 metrisch Diaphragm Valve T4 metric
PVDF-Schweißstutzen PVDF fusion spigot
PO-NO PO-NO
PTFE beschichtete Membrane PTFE coated membrane
d DN Typ PN VE Art. Nr.
Pack
1 20 15 K62 10 1 126162
1 25 20 K62 10 1 126163
1 32 25 K82 10 1 126164
1 40 32 K122 10 1 126165
1 50 40 K122 10 1 126166
1 63 50 K123 10 1 126167

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
PO-NO PO-NO
PTFE beschichtete Membrane PTFE coated diaphragm
DN15 = Losflansch DN15 = Backing Flange
d DN Typ PN VE Art. Nr.
Pack
1 20 15 K62 10 1 126197
1 25 20 K62 10 1 125311
1 32 25 K82 10 1 125310
1 40 32 K122 10 1 126200
1 50 40 K122 10 1 126201
1 63 50 K123 10 1 126202 Valves PVDF

308
