P. 45

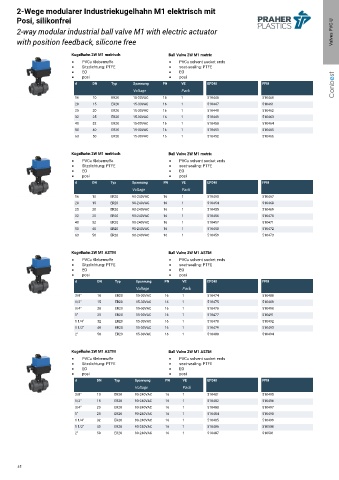

2-Wege modularer Industriekugelhahn M1 elektrisch mit
Posi, silikonfrei
2-way modular industrial ball valve M1 with electric actuator Valves PVC-U
with position feedback, silicone free
Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM Conbest
Voltage Pack
5 16 10 ER20 15-30VAC 16 1 510446 510460
5 20 15 ER20 15-30VAC 16 1 510447 510461
5 25 20 ER20 15-30VAC 16 1 510448 510462
5 32 25 ER20 15-30VAC 16 1 510449 510463
5 40 32 ER20 15-30VAC 16 1 510450 510464
5 50 40 ER20 15-30VAC 16 1 510451 510465
5 63 50 ER20 15-30VAC 16 1 510452 510466
Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM
Voltage Pack
5 16 10 ER20 90-240VAC 16 1 510453 510467
5 20 15 ER20 90-240VAC 16 1 510454 510468
5 25 20 ER20 90-240VAC 16 1 510455 510469
5 32 25 ER20 90-240VAC 16 1 510456 510470
5 40 32 ER20 90-240VAC 16 1 510457 510471
5 50 40 ER20 90-240VAC 16 1 510458 510472
5 63 50 ER20 90-240VAC 16 1 510459 510473
Kugelhahn 2W M1 ASTM Ball Valve 2W M1 ASTM
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM
Voltage Pack
5 3/8" 10 ER20 15-30VAC 16 1 510474 510488
5 1/2" 15 ER20 15-30VAC 16 1 510475 510489
5 3/4" 20 ER20 15-30VAC 16 1 510476 510490
5 1" 25 ER20 15-30VAC 16 1 510477 510491
5 1 1/4" 32 ER20 15-30VAC 16 1 510478 510492
5 1 1/2" 40 ER20 15-30VAC 16 1 510479 510493
5 2" 50 ER20 15-30VAC 16 1 510480 510494
Kugelhahn 2W M1 ASTM Ball Valve 2W M1 ASTM
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM
Voltage Pack
5 3/8" 10 ER20 90-240VAC 16 1 510481 510495
5 1/2" 15 ER20 90-240VAC 16 1 510482 510496
5 3/4" 20 ER20 90-240VAC 16 1 510483 510497
5 1" 25 ER20 90-240VAC 16 1 510484 510498
5 1 1/4" 32 ER20 90-240VAC 16 1 510485 510499
5 1 1/2" 40 ER20 90-240VAC 16 1 510486 510500
5 2" 50 ER20 90-240VAC 16 1 510487 510501
45
