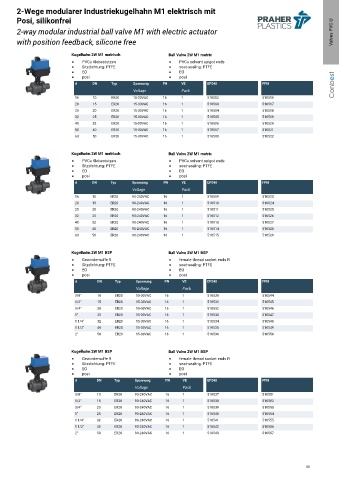

2-Wege modularer Industriekugelhahn M1 elektrisch mit
Posi, silikonfrei
2-way modular industrial ball valve M1 with electric actuator Valves PVC-U
with position feedback, silicone free

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebestutzen PVCu solvent spigot ends
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM Conbest
Voltage Pack
5 16 10 ER20 15-30VAC 16 1 510502 510516
5 20 15 ER20 15-30VAC 16 1 510503 510517
5 25 20 ER20 15-30VAC 16 1 510504 510518
5 32 25 ER20 15-30VAC 16 1 510505 510519
5 40 32 ER20 15-30VAC 16 1 510506 510520
5 50 40 ER20 15-30VAC 16 1 510507 510521
5 63 50 ER20 15-30VAC 16 1 510508 510522

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebestutzen PVCu solvent spigot ends
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM
Voltage Pack
5 16 10 ER20 90-240VAC 16 1 510509 510523
5 20 15 ER20 90-240VAC 16 1 510510 510524
5 25 20 ER20 90-240VAC 16 1 510511 510525
5 32 25 ER20 90-240VAC 16 1 510512 510526
5 40 32 ER20 90-240VAC 16 1 510513 510527
5 50 40 ER20 90-240VAC 16 1 510514 510528
5 63 50 ER20 90-240VAC 16 1 510515 510529

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM
Voltage Pack
5 3/8" 10 ER20 15-30VAC 16 1 510530 510544
5 1/2" 15 ER20 15-30VAC 16 1 510531 510545
5 3/4" 20 ER20 15-30VAC 16 1 510532 510546
5 1" 25 ER20 15-30VAC 16 1 510533 510547
5 1 1/4" 32 ER20 15-30VAC 16 1 510534 510548
5 1 1/2" 40 ER20 15-30VAC 16 1 510535 510549
5 2" 50 ER20 15-30VAC 16 1 510536 510550

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
EO EO
posi posi
d DN Typ Spannung PN VE EPDM FPM
Voltage Pack
5 3/8" 10 ER20 90-240VAC 16 1 510537 510551
5 1/2" 15 ER20 90-240VAC 16 1 510538 510552
5 3/4" 20 ER20 90-240VAC 16 1 510539 510553
5 1" 25 ER20 90-240VAC 16 1 510540 510554
5 1 1/4" 32 ER20 90-240VAC 16 1 510541 510555
5 1 1/2" 40 ER20 90-240VAC 16 1 510542 510556
5 2" 50 ER20 90-240VAC 16 1 510543 510557

46
