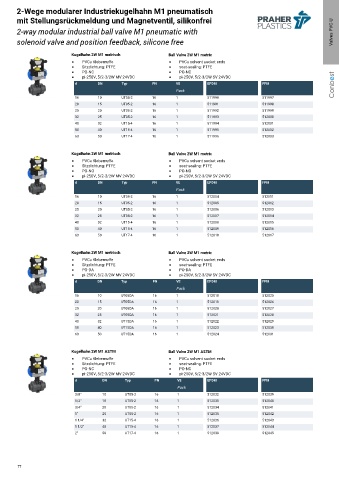

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmeldung und Magnetventil, silikonfrei
2-way modular industrial ball valve M1 pneumatic with Valves PVC-U
solenoid valve and position feedback, silicone free

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM Conbest
Pack
5 16 10 UT05-2 16 1 511990 511997
5 20 15 UT05-2 16 1 511991 511998
5 25 20 UT05-2 16 1 511992 511999
5 32 25 UT05-2 16 1 511993 512000
5 40 32 UT15-4 16 1 511994 512001
5 50 40 UT15-4 16 1 511995 512002
5 63 50 UT17-4 16 1 511996 512003

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 16 10 UT05-2 16 1 512004 512011
5 20 15 UT05-2 16 1 512005 512012
5 25 20 UT05-2 16 1 512006 512013
5 32 25 UT05-2 16 1 512007 512014
5 40 32 UT15-4 16 1 512008 512015
5 50 40 UT15-4 16 1 512009 512016
5 63 50 UT17-4 16 1 512010 512017

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 16 10 UT05DA 16 1 512018 512025
5 20 15 UT05DA 16 1 512019 512026
5 25 20 UT05DA 16 1 512020 512027
5 32 25 UT05DA 16 1 512021 512028
5 40 32 UT15DA 16 1 512022 512029
5 50 40 UT15DA 16 1 512023 512030
5 63 50 UT15DA 16 1 512024 512031

Kugelhahn 2W M1 ASTM Ball Valve 2W M1 ASTM
PVCu Klebemuffe PVCu solvent socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 512032 512039
5 1/2" 15 UT05-2 16 1 512033 512040
5 3/4" 20 UT05-2 16 1 512034 512041
5 1" 25 UT05-2 16 1 512035 512042
5 1 1/4" 32 UT15-4 16 1 512036 512043
5 1 1/2" 40 UT15-4 16 1 512037 512044
5 2" 50 UT17-4 16 1 512038 512045

77
