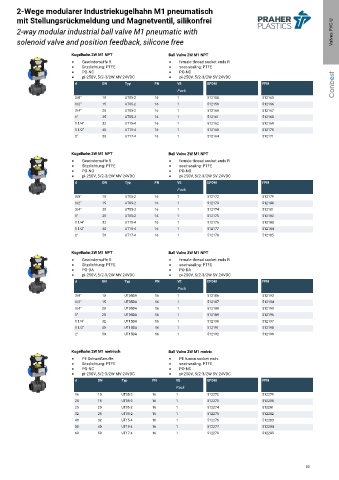

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmeldung und Magnetventil, silikonfrei
2-way modular industrial ball valve M1 pneumatic with Valves PVC-U
solenoid valve and position feedback, silicone free

Kugelhahn 2W M1 NPT Ball Valve 2W M1 NPT
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM Conbest
Pack
5 3/8" 10 UT05-2 16 1 512158 512165
5 1/2" 15 UT05-2 16 1 512159 512166
5 3/4" 20 UT05-2 16 1 512160 512167
5 1" 25 UT05-2 16 1 512161 512168
5 1 1/4" 32 UT15-4 16 1 512162 512169
5 1 1/2" 40 UT15-4 16 1 512163 512170
5 2" 50 UT17-4 16 1 512164 512171

Kugelhahn 2W M1 NPT Ball Valve 2W M1 NPT
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 512172 512179
5 1/2" 15 UT05-2 16 1 512173 512180
5 3/4" 20 UT05-2 16 1 512174 512181
5 1" 25 UT05-2 16 1 512175 512182
5 1 1/4" 32 UT15-4 16 1 512176 512183
5 1 1/2" 40 UT15-4 16 1 512177 512184
5 2" 50 UT17-4 16 1 512178 512185

Kugelhahn 2W M1 NPT Ball Valve 2W M1 NPT
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05DA 16 1 512186 512193
5 1/2" 15 UT05DA 16 1 512187 512194
5 3/4" 20 UT05DA 16 1 512188 512195
5 1" 25 UT05DA 16 1 512189 512196
5 1 1/4" 32 UT15DA 16 1 512190 512197
5 1 1/2" 40 UT15DA 16 1 512191 512198
5 2" 50 UT15DA 16 1 512192 512199

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PE Schweißmuffe PE fusion socket ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 16 10 UT05-2 16 1 512272 512279
5 20 15 UT05-2 16 1 512273 512280
5 25 20 UT05-2 16 1 512274 512281
5 32 25 UT05-2 16 1 512275 512282
5 40 32 UT15-4 16 1 512276 512283
5 50 40 UT15-4 16 1 512277 512284
5 63 50 UT17-4 16 1 512278 512285
