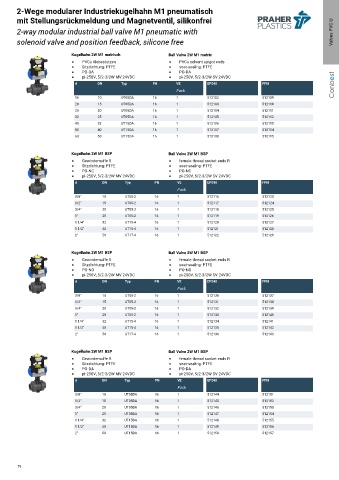

2-Wege modularer Industriekugelhahn M1 pneumatisch
mit Stellungsrückmeldung und Magnetventil, silikonfrei
2-way modular industrial ball valve M1 pneumatic with Valves PVC-U
solenoid valve and position feedback, silicone free

Kugelhahn 2W M1 metrisch Ball Valve 2W M1 metric
PVCu Klebestutzen PVCu solvent spigot ends
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM Conbest
Pack
5 16 10 UT05DA 16 1 512102 512109
5 20 15 UT05DA 16 1 512103 512110
5 25 20 UT05DA 16 1 512104 512111
5 32 25 UT05DA 16 1 512105 512112
5 40 32 UT15DA 16 1 512106 512113
5 50 40 UT15DA 16 1 512107 512114
5 63 50 UT15DA 16 1 512108 512115

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NC PO-NC
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 512116 512123
5 1/2" 15 UT05-2 16 1 512117 512124
5 3/4" 20 UT05-2 16 1 512118 512125
5 1" 25 UT05-2 16 1 512119 512126
5 1 1/4" 32 UT15-4 16 1 512120 512127
5 1 1/2" 40 UT15-4 16 1 512121 512128
5 2" 50 UT17-4 16 1 512122 512129

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-NO PO-NO
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05-2 16 1 512130 512137
5 1/2" 15 UT05-2 16 1 512131 512138
5 3/4" 20 UT05-2 16 1 512132 512139
5 1" 25 UT05-2 16 1 512133 512140
5 1 1/4" 32 UT15-4 16 1 512134 512141
5 1 1/2" 40 UT15-4 16 1 512135 512142
5 2" 50 UT17-4 16 1 512136 512143

Kugelhahn 2W M1 BSP Ball Valve 2W M1 BSP
Gewindemuffe R female thread socket ends R
Sitzdichtung: PTFE seat-sealing: PTFE
PO-DA PO-DA
pi-250V, 5/2-3/2W MV 24VDC pi-250V, 5/2-3/2W SV 24VDC
d DN Typ PN VE EPDM FPM
Pack
5 3/8" 10 UT05DA 16 1 512144 512151
5 1/2" 15 UT05DA 16 1 512145 512152
5 3/4" 20 UT05DA 16 1 512146 512153
5 1" 25 UT05DA 16 1 512147 512154
5 1 1/4" 32 UT15DA 16 1 512148 512155
5 1 1/2" 40 UT15DA 16 1 512149 512156
5 2" 50 UT15DA 16 1 512150 512157

79
