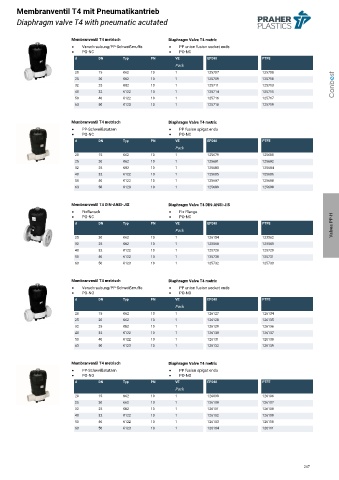

Membranventil T4 mit Pneumatikantrieb
Diaphragm valve T4 with pneumatic acutated

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung/PP-Schweißmuffe PP union fusion socket ends
PO-NC PO-NC
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 125707 125708
1 25 20 K62 10 1 125709 125710
1 32 25 K82 10 1 125711 125713 Conbest
1 40 32 K122 10 1 125714 125715
1 50 40 K122 10 1 125716 125717
1 63 50 K123 10 1 125718 125719

Membranventil T4 metrisch Diaphragm Valve T4 metric
PP-Schweißstutzen PP fusion spigot ends
PO-NC PO-NC
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 125679 125680
1 25 20 K62 10 1 125681 125682
1 32 25 K82 10 1 125683 125684
1 40 32 K122 10 1 125685 125686
1 50 40 K122 10 1 125687 125688
1 63 50 K123 10 1 125689 125690

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
PO-NC PO-NC
d DN Typ PN VE EPDM PTFE Valves PP-H
Pack
1 25 20 K62 10 1 126154 123562
1 32 25 K82 10 1 123560 123563
1 40 32 K122 10 1 125728 125729
1 50 40 K122 10 1 125730 125731
1 63 50 K123 10 1 125732 125733

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung/PP-Schweißmuffe PP union fusion socket ends
PO-NO PO-NO
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 126127 126134
1 25 20 K62 10 1 126128 126135
1 32 25 K82 10 1 126129 126136
1 40 32 K122 10 1 126130 126137
1 50 40 K122 10 1 126131 126138
1 63 50 K123 10 1 126132 126139

Membranventil T4 metrisch Diaphragm Valve T4 metric
PP-Schweißstutzen PP fusion spigot ends
PO-NO PO-NO
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 126099 126106
1 25 20 K62 10 1 126100 126107
1 32 25 K82 10 1 126101 126108
1 40 32 K122 10 1 126102 126109
1 50 40 K122 10 1 126103 126110
1 63 50 K123 10 1 126104 126111

247
