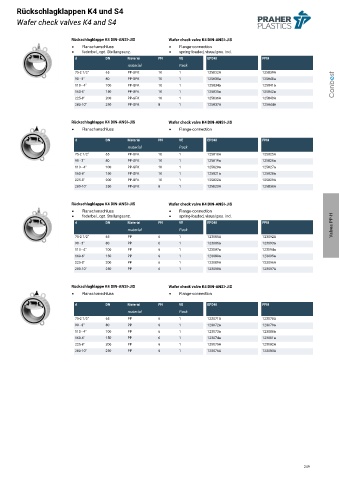

P. 249
Rückschlagklappen K4 und S4
Wafer check valves K4 and S4
Rückschlagklappe K4 DIN-ANSI-JIS Wafer check valve K4 DIN-ANSI-JIS
Flanschanschluss Flange-connection
federbel., opt. Stellungsanz. spring-loaded, visual pos. ind.
d DN Material PN VE EPDM FPM
material Pack
1 75-2 1/2" 65 PP-GFK 10 1 125832A 125839A
1 90 - 3" 80 PP-GFK 10 1 125833a 125840a
1 110 - 4" 100 PP-GFK 10 1 125834a 125841a Conbest
1 160-6" 150 PP-GFK 10 1 125835a 125842a
1 225-8" 200 PP-GFK 10 1 125836A 125843A
1 280-10" 250 PP-GFK 8 1 125837A 125844A
Rückschlagklappe K4 DIN-ANSI-JIS Wafer check valve K4 DIN-ANSI-JIS
Flanschanschluss Flange-connection
d DN Material PN VE EPDM FPM
material Pack
1 75-2 1/2" 65 PP-GFK 10 1 125818A 125825A
1 90 - 3" 80 PP-GFK 10 1 125819a 125826a
1 110 - 4" 100 PP-GFK 10 1 125820a 125827a
1 160-6" 150 PP-GFK 10 1 125821a 125828a
1 225-8" 200 PP-GFK 10 1 125822A 125829A
1 280-10" 250 PP-GFK 8 1 125823A 125830A
Rückschlagklappe K4 DIN-ANSI-JIS Wafer check valve K4 DIN-ANSI-JIS
Flanschanschluss Flange-connection
federbel., opt. Stellungsanz. spring-loaded, visual pos. ind.
d DN Material PN VE EPDM FPM Valves PP-H
material Pack
1 75-2 1/2" 65 PP 6 1 123085A 123092A
1 90 - 3" 80 PP 6 1 123086a 123093a
1 110 - 4" 100 PP 6 1 123087a 123094a
1 160-6" 150 PP 6 1 123088a 123095a
1 225-8" 200 PP 6 1 123089A 123096A
1 280-10" 250 PP 6 1 123090A 123097A
Rückschlagklappe K4 DIN-ANSI-JIS Wafer check valve K4 DIN-ANSI-JIS
Flanschanschluss Flange-connection
d DN Material PN VE EPDM FPM
material Pack
1 75-2 1/2" 65 PP 6 1 123071A 123078A
1 90 - 3" 80 PP 6 1 123072a 123079a
1 110 - 4" 100 PP 6 1 123073a 123080a
1 160-6" 150 PP 6 1 123074a 123081a
1 225-8" 200 PP 6 1 123075A 123082A
1 280-10" 250 PP 6 1 123076A 123083A
249
