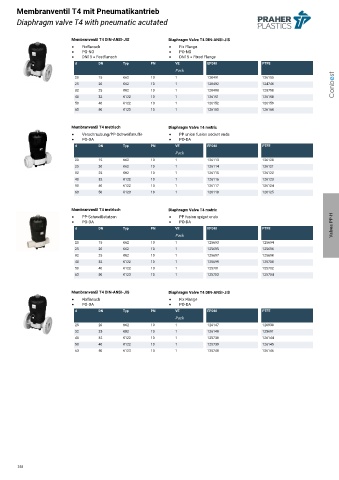

Membranventil T4 mit Pneumatikantrieb
Diaphragm valve T4 with pneumatic acutated

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
PO-NO PO-NO
DN15 = Festflansch DN15 = Fixed Flange
d DN Typ PN VE EPDM PTFE
Pack
Conbest
1 20 15 K62 10 1 120491 126155
1 25 20 K62 10 1 120492 124746
1 32 25 K82 10 1 120493 123750
1 40 32 K122 10 1 126151 126158
1 50 40 K122 10 1 126152 126159
1 63 50 K123 10 1 126153 126160

Membranventil T4 metrisch Diaphragm Valve T4 metric
Verschraubung/PP-Schweißmuffe PP union fusion socket ends
PO-DA PO-DA
d DN Typ PN VE EPDM PTFE
Pack
1 20 15 K62 10 1 126113 126120
1 25 20 K62 10 1 126114 126121
1 32 25 K82 10 1 126115 126122
1 40 32 K122 10 1 126116 126123
1 50 40 K122 10 1 126117 126124
1 63 50 K123 10 1 126118 126125

Membranventil T4 metrisch Diaphragm Valve T4 metric
PP-Schweißstutzen PP fusion spigot ends
PO-DA PO-DA
d DN Typ PN VE EPDM PTFE Valves PP-H
Pack
1 20 15 K62 10 1 125693 125694
1 25 20 K62 10 1 125695 125696
1 32 25 K82 10 1 125697 125698
1 40 32 K122 10 1 125699 125700
1 50 40 K122 10 1 125701 125702
1 63 50 K123 10 1 125703 125704

Membranventil T4 DIN-ANSI-JIS Diaphragm Valve T4 DIN-ANSI-JIS
Fixflansch Fix Flange
PO-DA PO-DA
d DN Typ PN VE EPDM PTFE
Pack
1 25 20 K62 10 1 126147 120930
1 32 25 K82 10 1 126140 125691
1 40 32 K122 10 1 125738 126144
1 50 40 K122 10 1 125739 126145
1 63 50 K123 10 1 125740 126146

248
